Starting
in January 2010 I changed my job. The company I worked
for is based in Freiburg/Germany. Therefore I acquired
a house in the Breisgau area close to Freiburg. The
house provides good opportunities to build up a Ham
Radio station with antennas on the roof of the house.
My QTH is blocked in some directions by mountains of

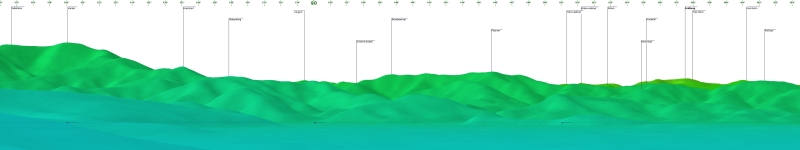

the black forest and also Kaiserstuhl. If you click
on the picture below you will get a simulated view of
my horizon. Please note that the picture is quite large
as the width is approx. 28000 pixels. |
|
|
|
Occasionally
I used to setup an Echolink simplex gateway using the
callsign DD1US-L and the node number 518482. It was based on the TM-D710E and
a DELL netbook connected to the Internet by WLAN. The
TM-D710E supported nicely simultaneous operation of
the APRS station and the Echolink gateway. |
My
Ham Radio station is never finished as there are many
frequencies and modes to explore. Below you can see
some pictures of my recent antenna setups. I am operating
on the HF bands but mostly on VHF/UHF/SHF. Satellite
communication is my main focus. |

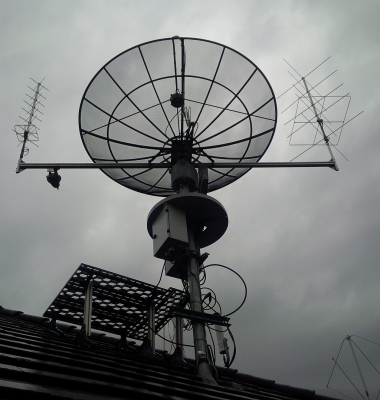

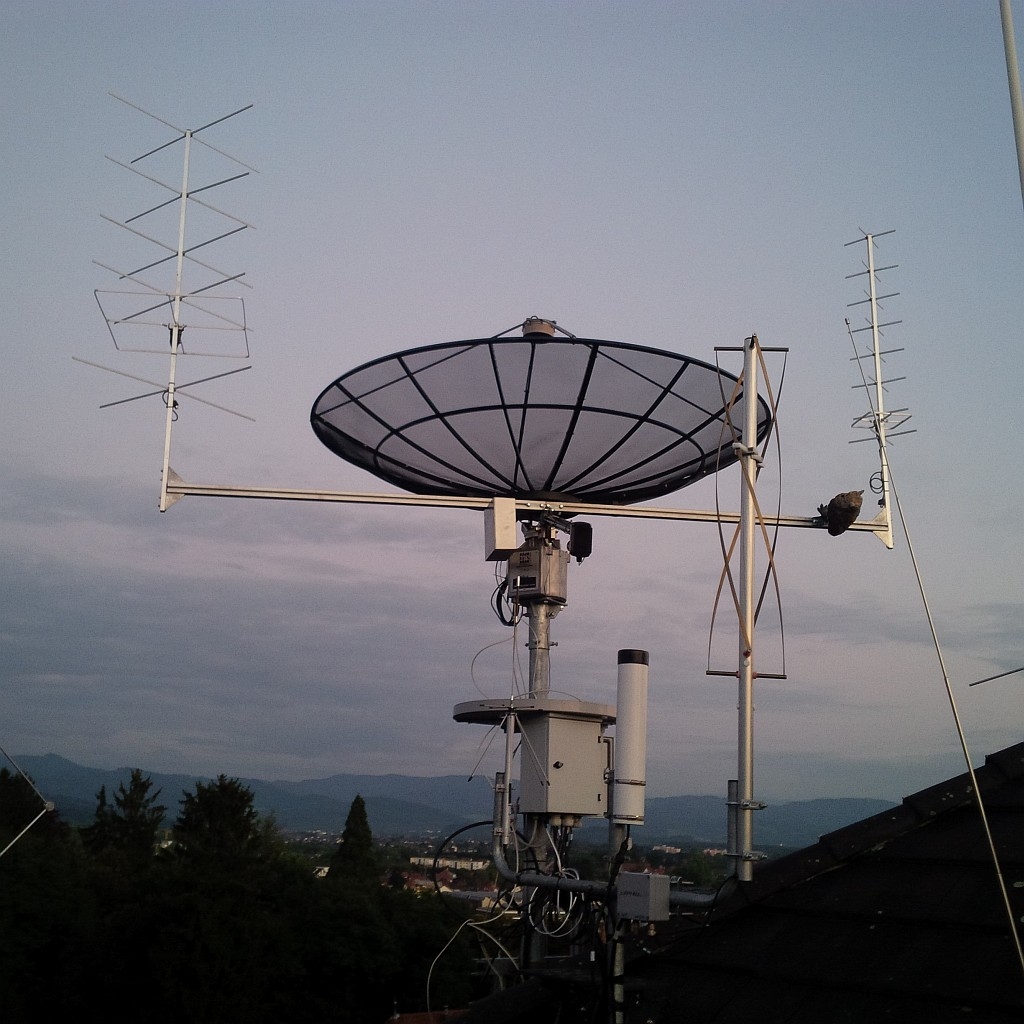

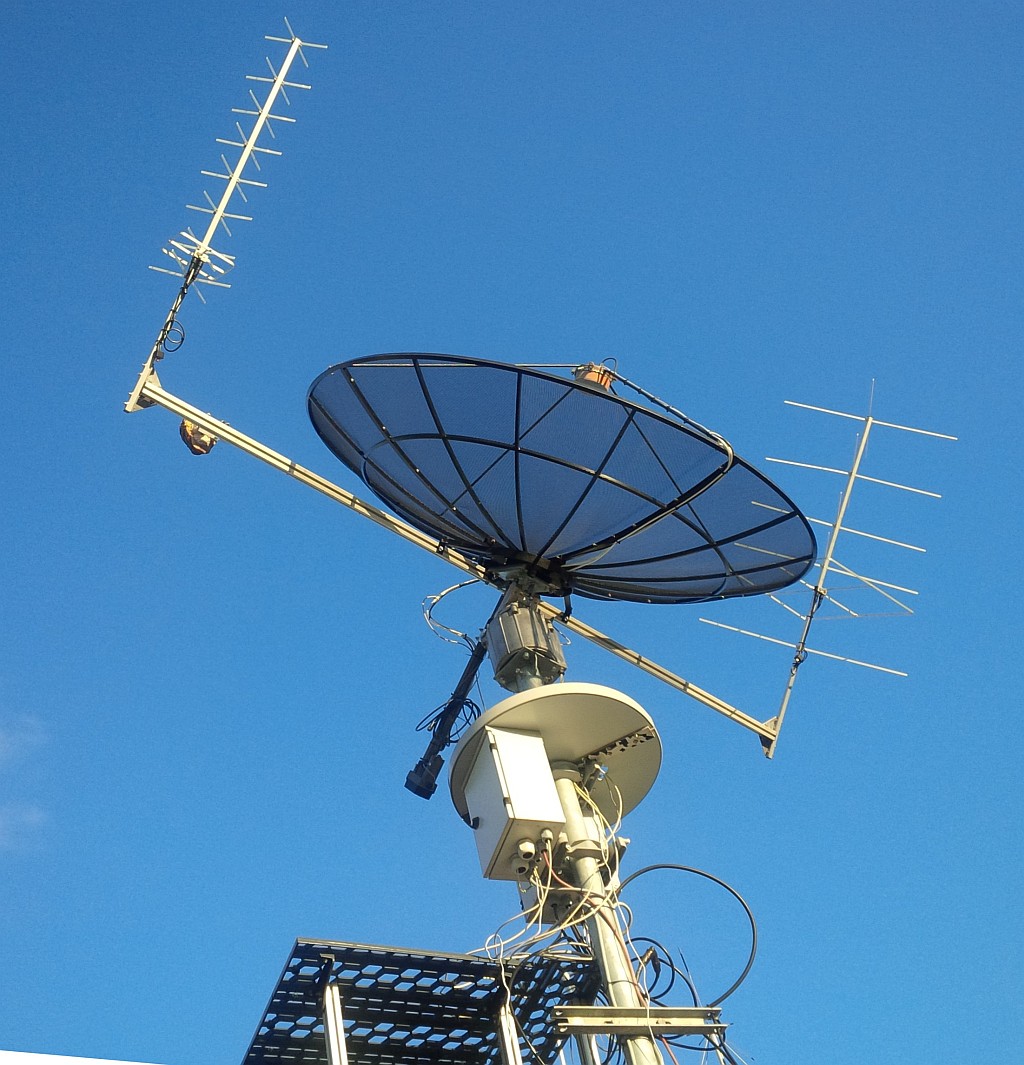

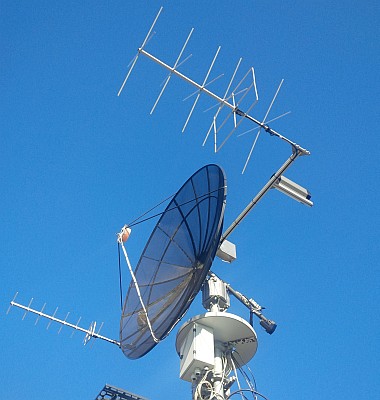

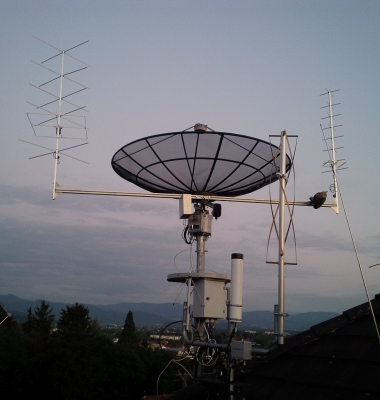

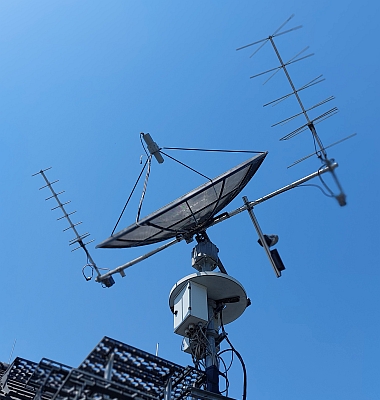

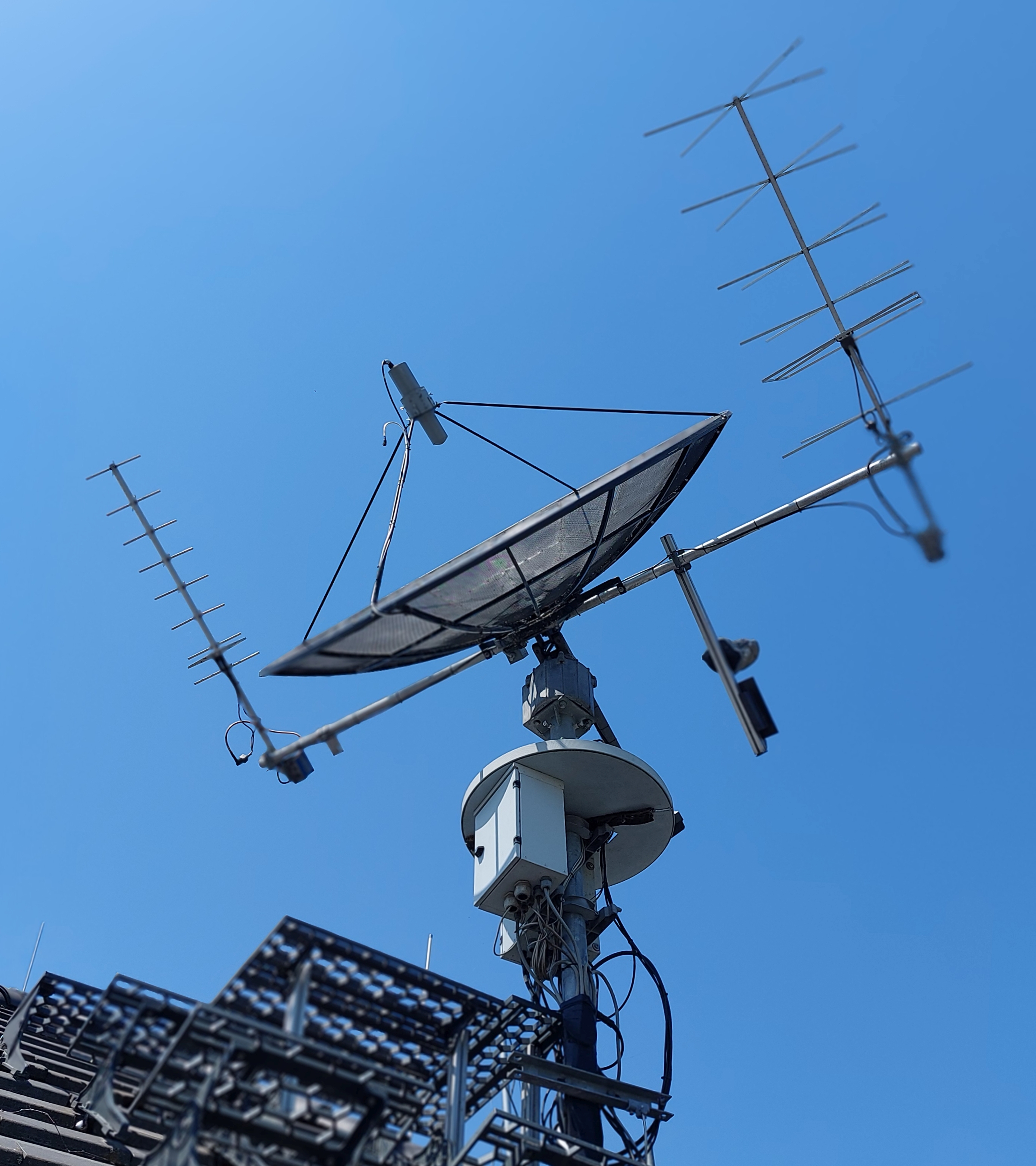

2.3m mesh dish (23cm,
13cm, 9cm, 6cm, 3cm),
2m and 70 X-Quads
on AZ/EL Rotator
|

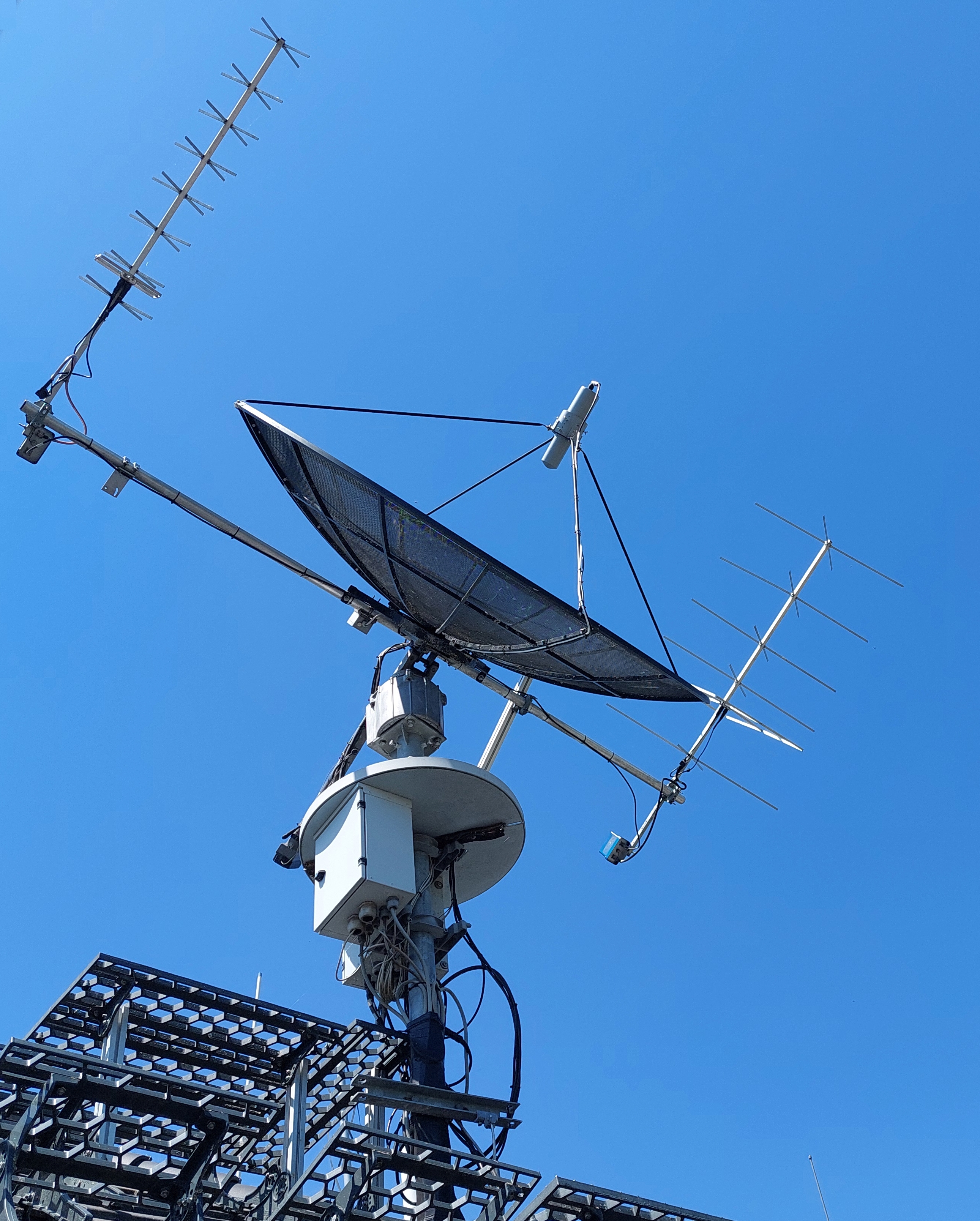

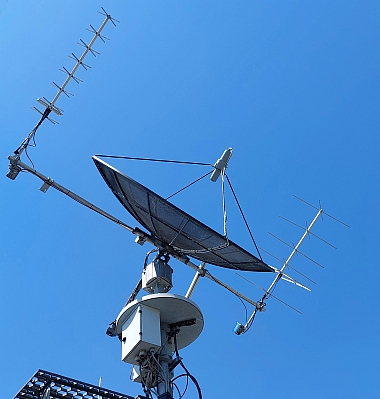

2.3m mesh dish (23cm,
13cm, 9cm, 6cm, 3cm),
2m and 70 X-Quads
on AZ/EL Rotator
|

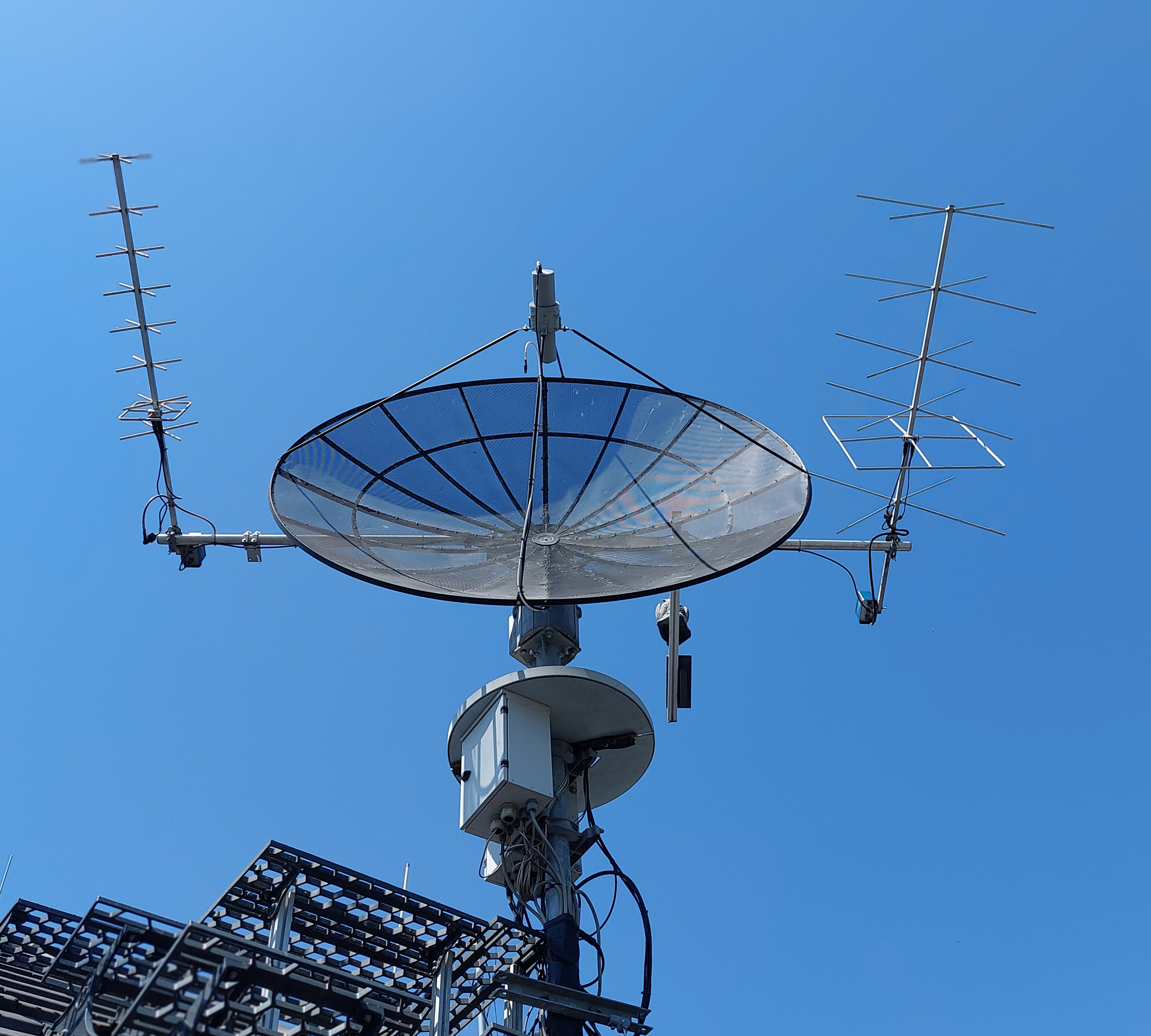

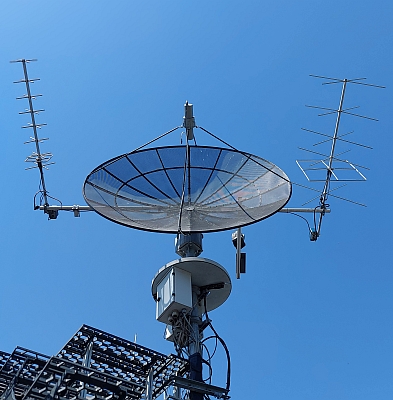

2.3m mesh dish (23cm,
13cm, 9cm, 6cm, 3cm),
2m and 70 X-Quads
on AZ/EL Rotator
|
2.3m mesh dish (23cm,
13cm, 9cm, 6cm, 3cm),
2m and 70 X-Quads
on AZ/EL Rotator
|

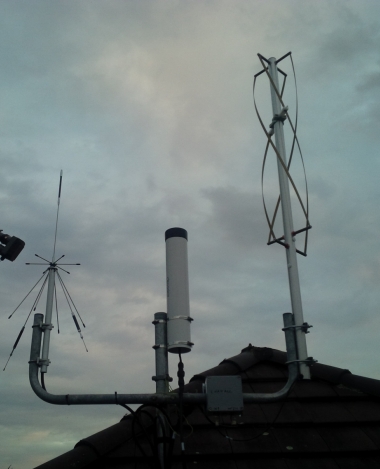

Discone (400-3000 MHz),
ARA-2000 (50-2000 MHz), Quadrifilar Helix
(137 MHz)
|

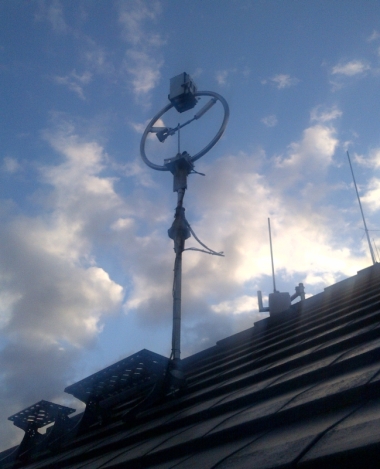

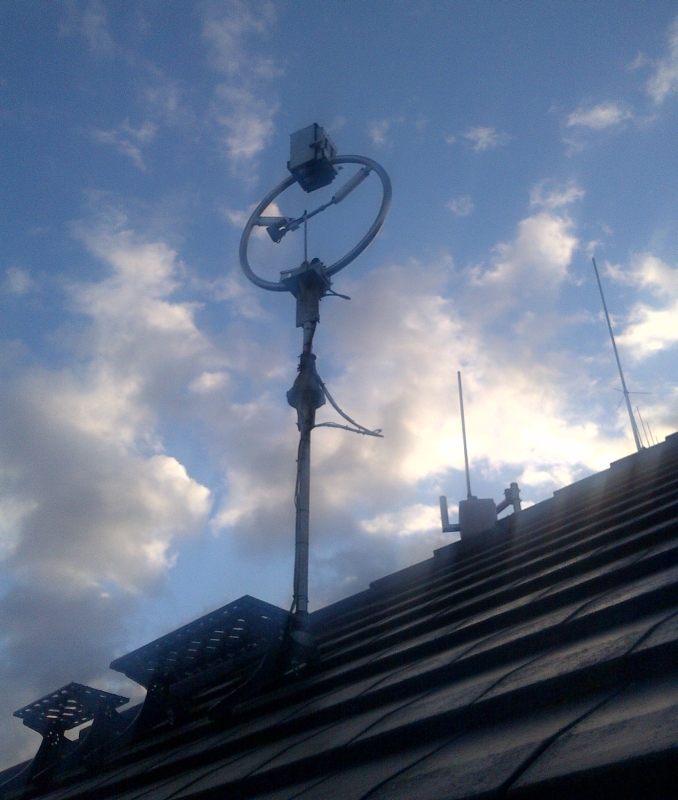

Magnetic Loop antenna
"Baby Loop" for 40m-10m
|

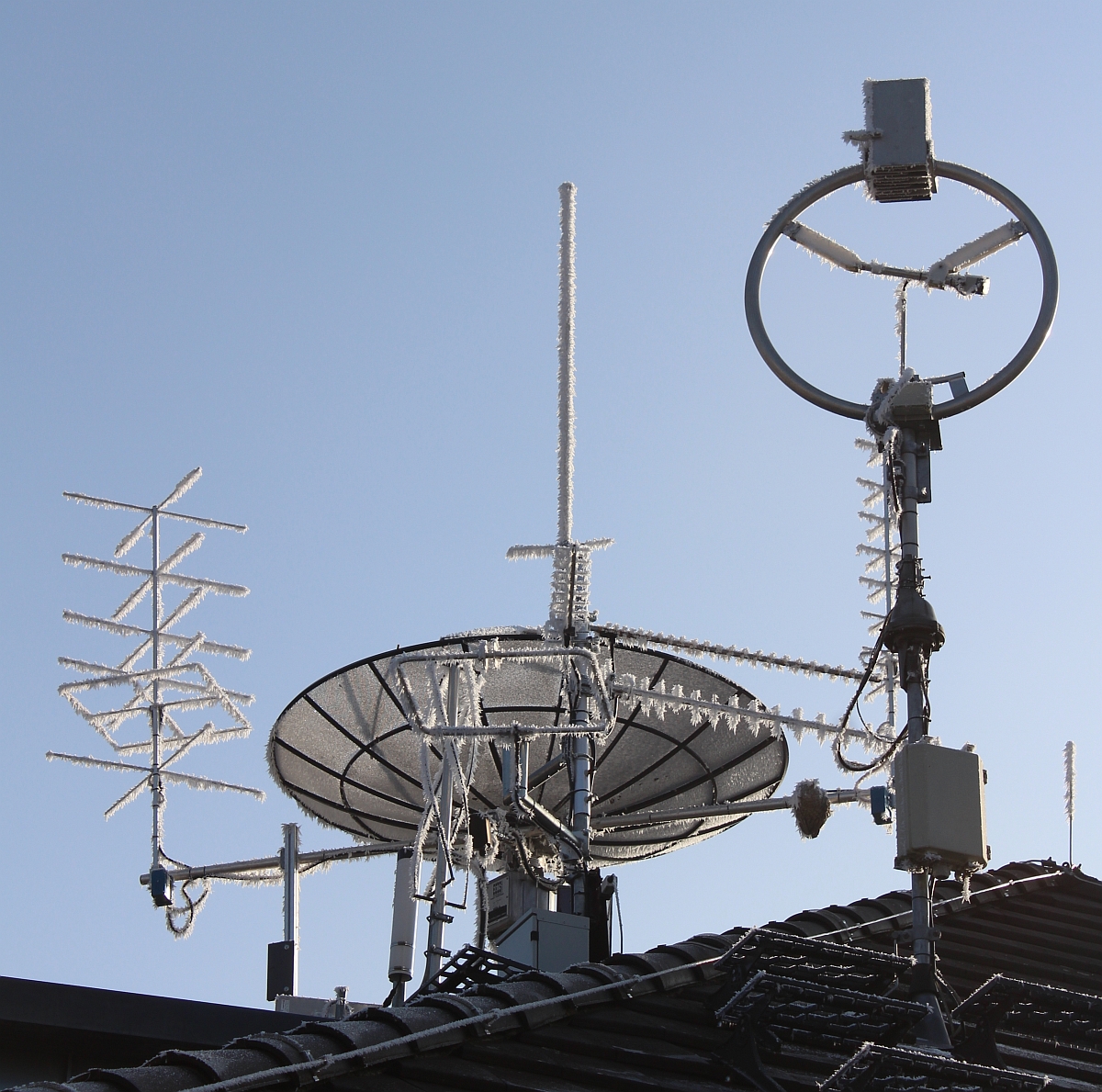

Here are some pictures of my antenna ensemble
covered by hoar frost
|

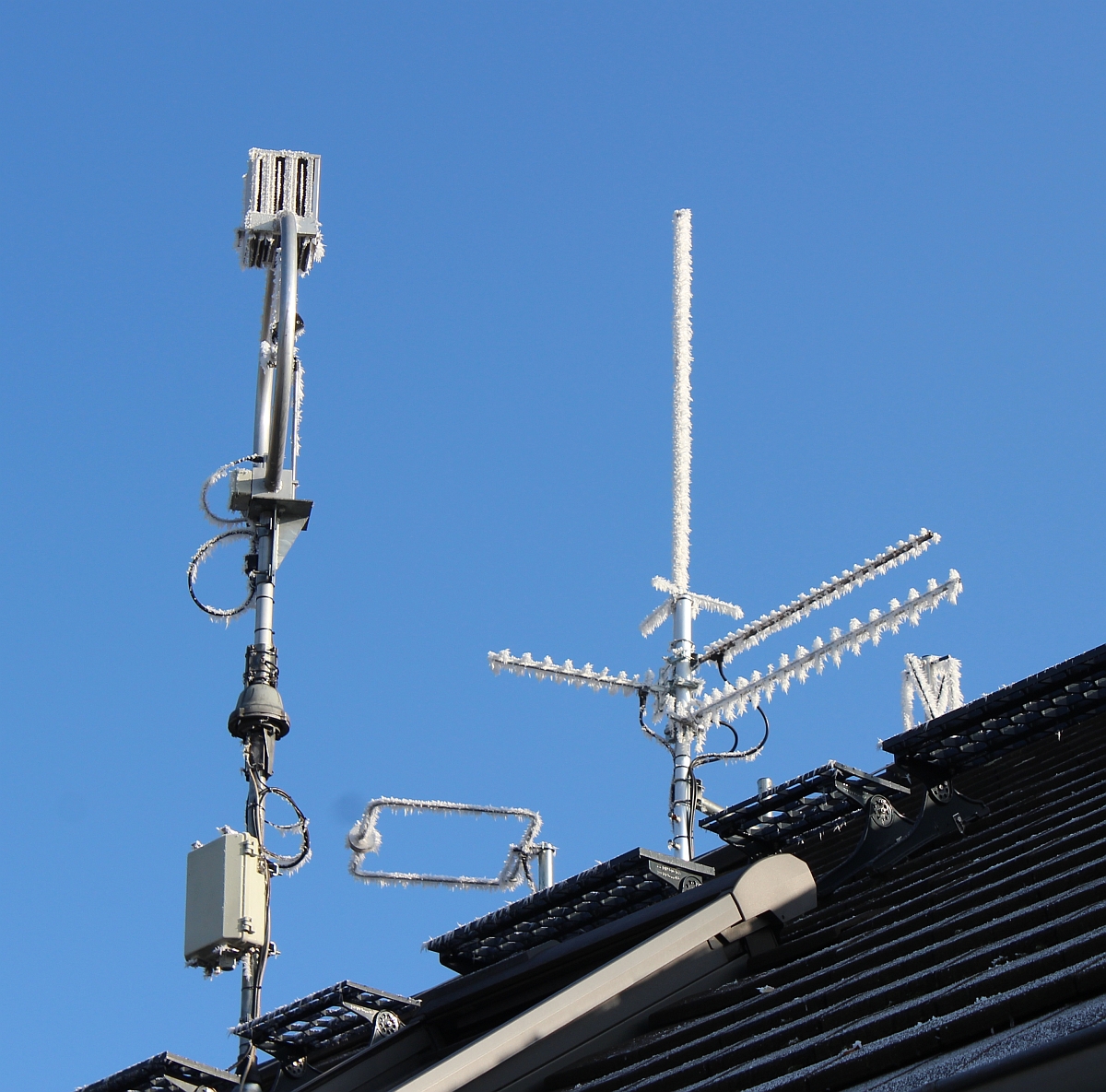

The magnetic loop antenna for HF and the
23cm and 13cm yagi antennas for ATV are
covered by hoar frost
|

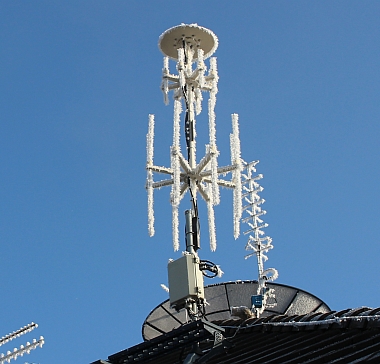

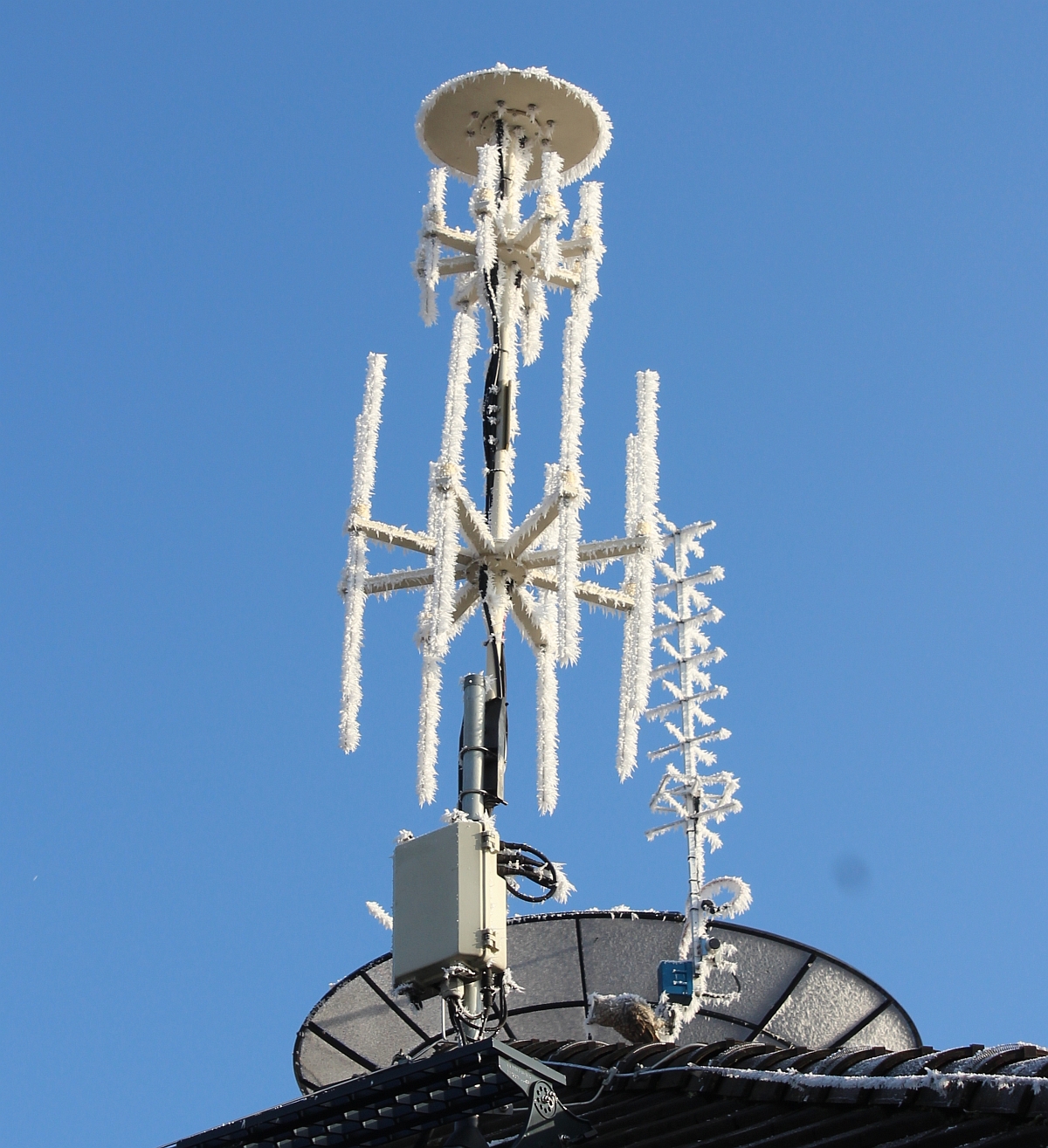

The stacked radio direction finder antenna
arrays for VHF/UHF/SHF are covered by hoar
frost
|

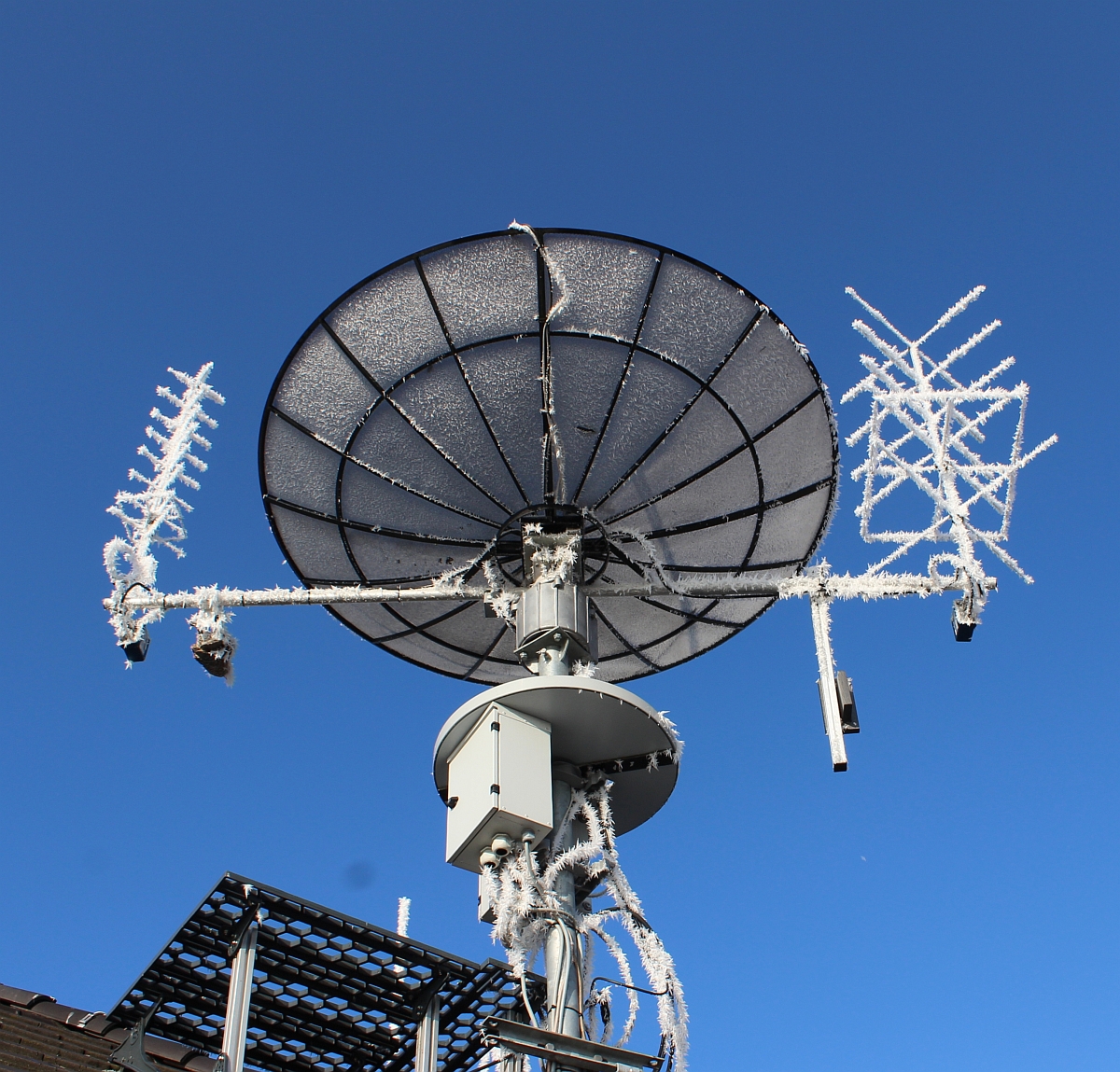

Also the 2.3m dish and the 2m and 70cm X-Quads
are covered by hoar frost
|

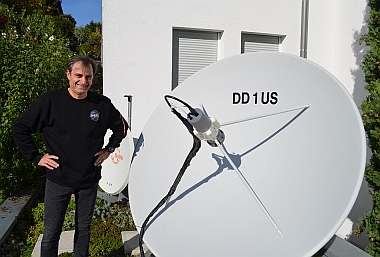

In 2019 I refurbished
an old Kathrein satellite dish with a diameter
of 1.8m and an f/D=0.29. I use it with a
POTY feed for up- and downlink on QO-100.
|
This is my shack at
my QTH in the Freiburg area.
|
|
In
this section you can find some information about repeaters/digipeaters/Echolink-gateways
and beacons in the area of Freiburg. You can see also
see how far away they are from my QTH in the Freiburg
area. The colour code in the table shows which repeaters
I can reach well (green), which I cannot reach at all (red)
and which are weak but sometimes operable (yellow).

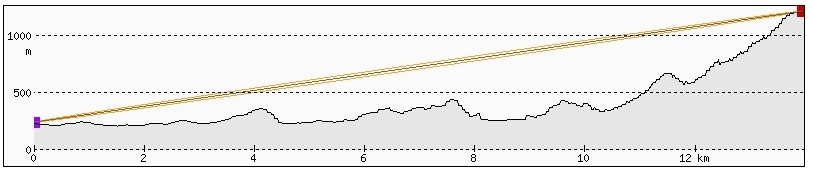

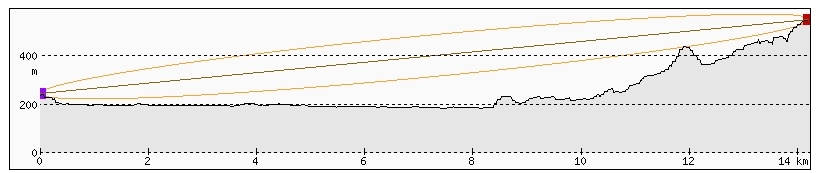

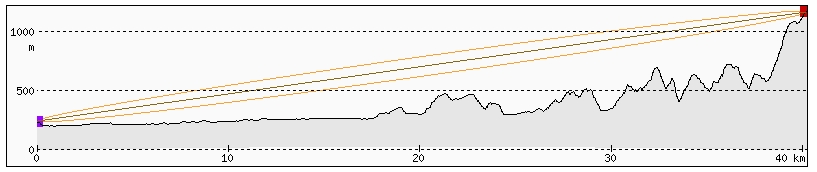

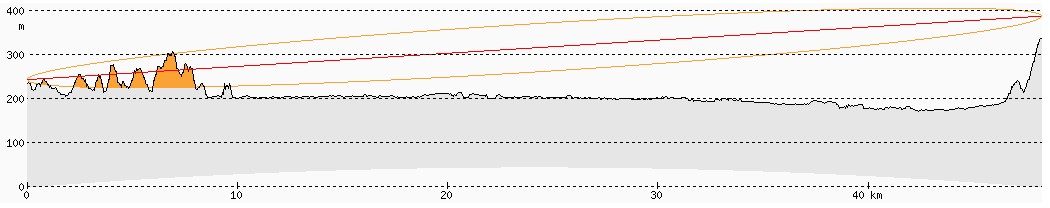

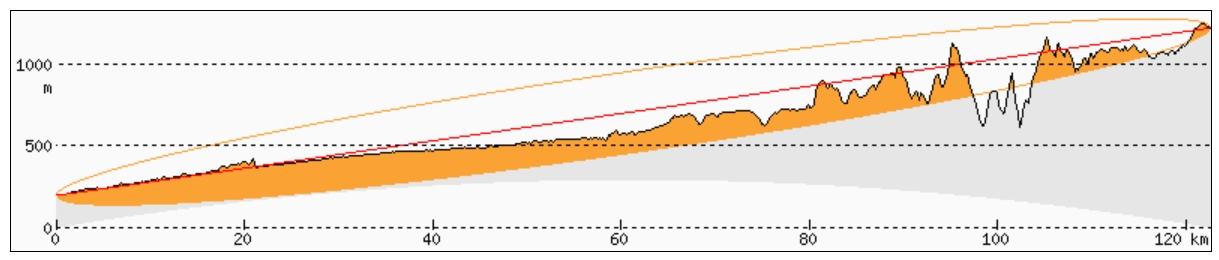

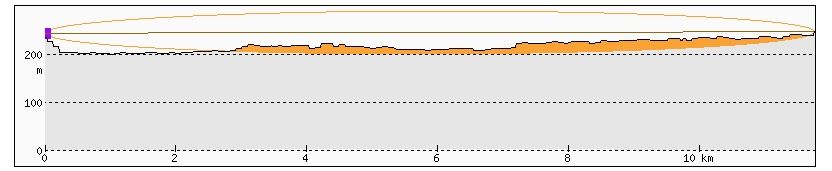

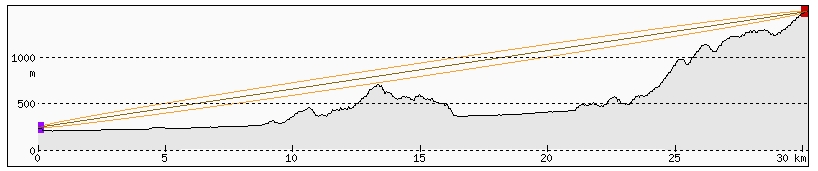

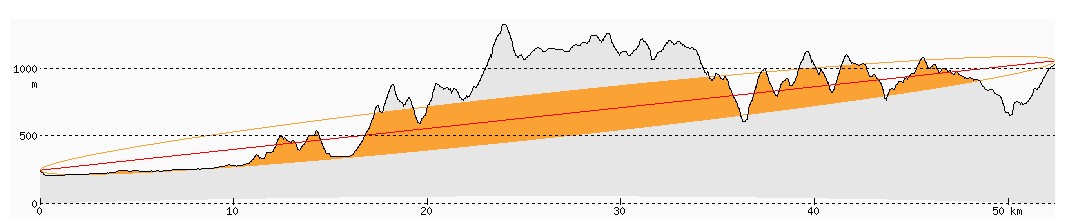

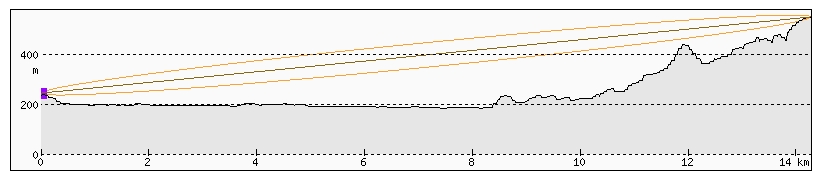

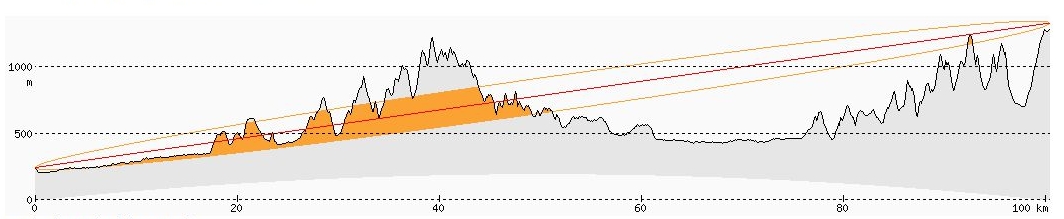

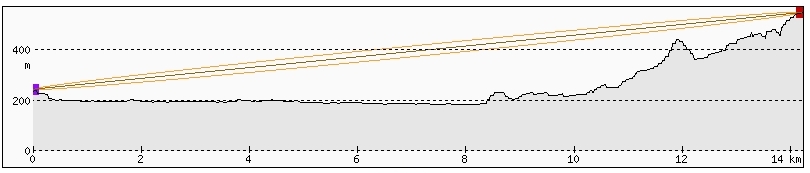

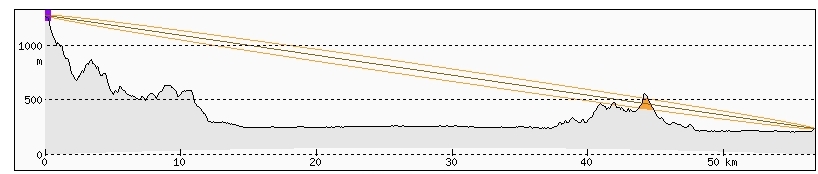

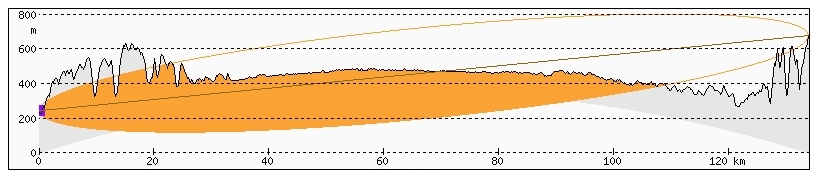

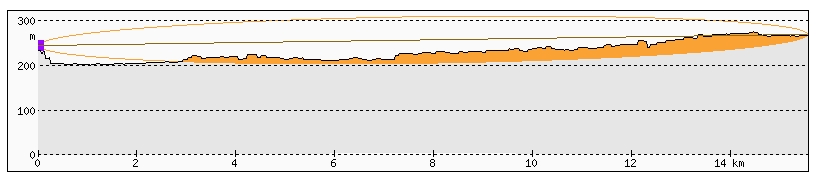

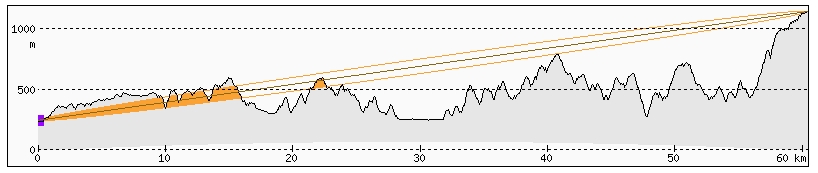

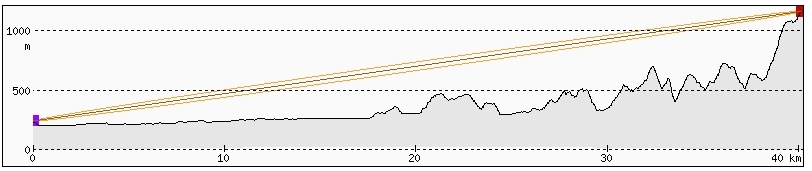

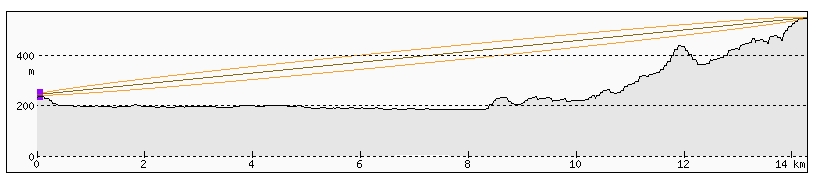

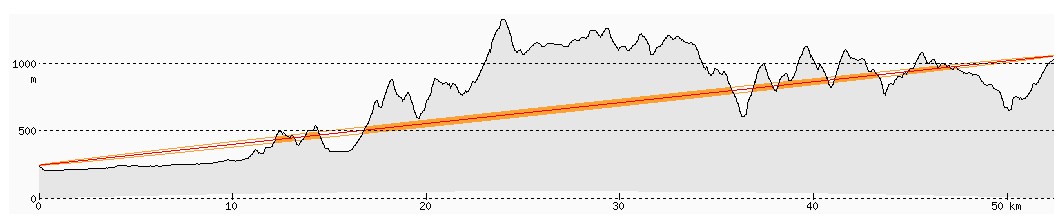

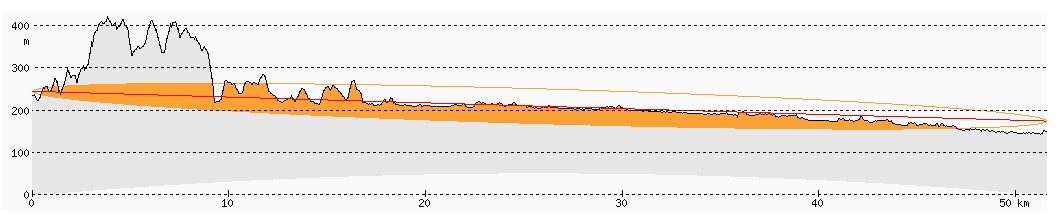

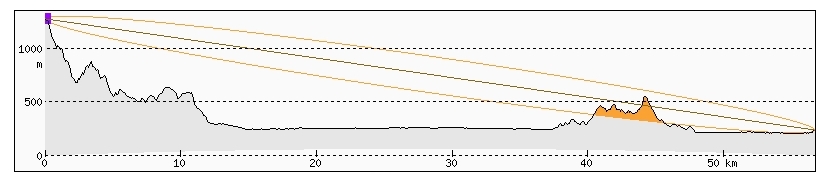

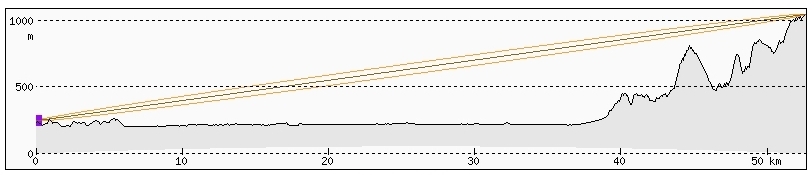

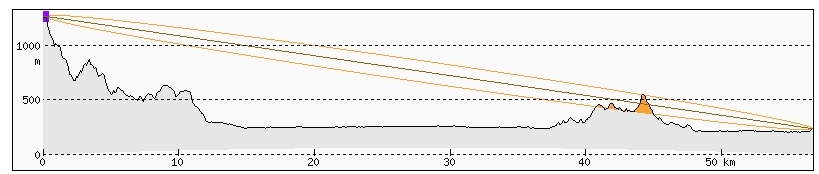

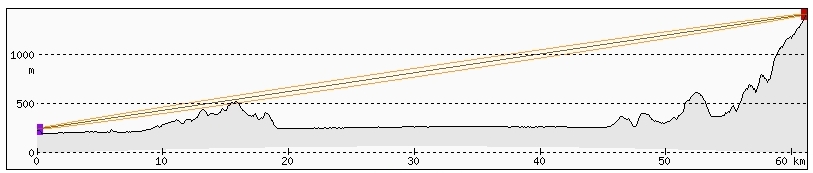

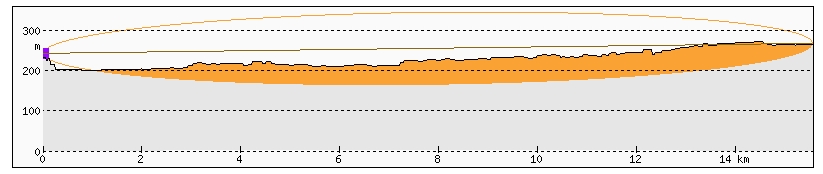

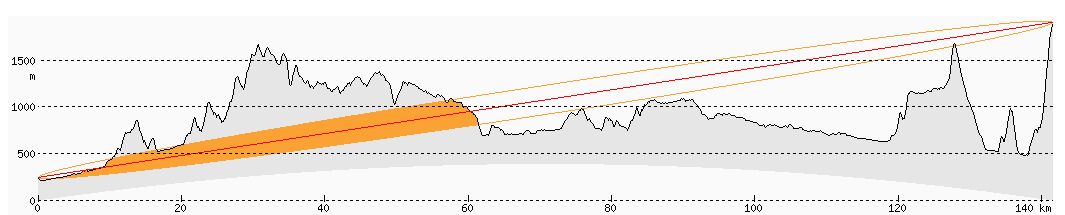

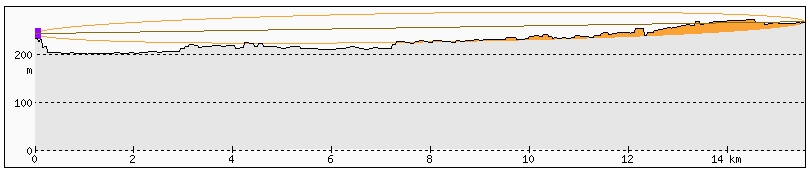

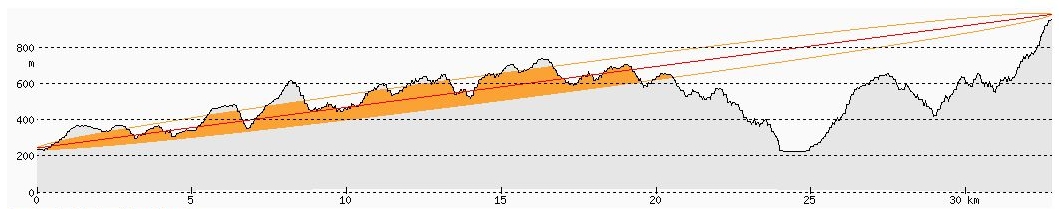

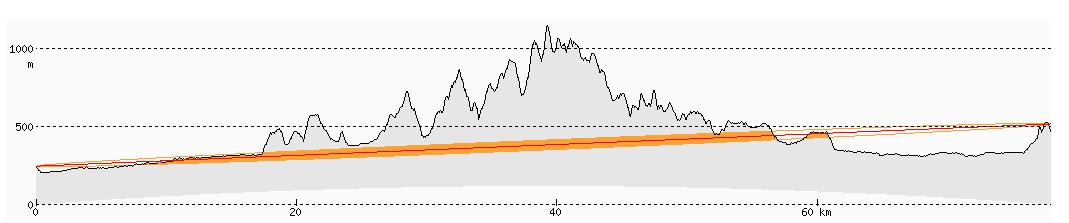

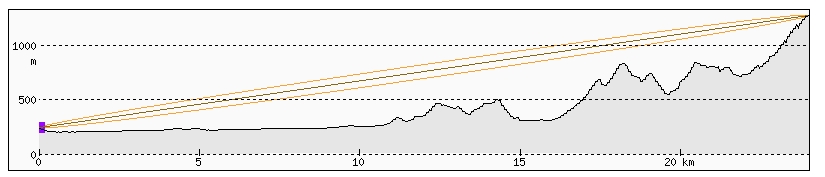

If the call sign of the other station is underlines,
you can click on it and you will get a calculated terrain
profile between my location and the other station. You
can thus see, whether a line of sight link is available
and/or whether there are obstacles in the frequency
dependent first fresnel zone. |
2m FM repeaters
Output / Input QRG
in MHz |
QTH / location |
Call sign |
QRA / locator |
QRB
/ distance |
Direction |
Remark |
AE 144.5875 |
Ehrenkirchen
(D) |
DD6LK-L |
JN37UW |
22km |
214° |
Echolink
301336 |
AE144.9625 |
Titisee/Schwärzenbach
(D) |
DB0TIT |
JN47CW |
31 km |
127° |
Echolink
395773 |
AE144.975 |
Bad Säckingen
(D) |
DB0SAC |
JN37XN |
61 km |
174° |
Echolink
264148 |
A144.750/E439.750 |
Strassbourg
(F) |
F5ZUV |
JN38UO |
54 km |
348° |
CTCSS
67Hz |
A145.2125/E433.425 |
Schirmeck
/ Champ du Feu(F) |
F5ZAW |
JN38PK |
54 km |
311° |
CTCSS
67Hz |
AE145.2375 |
Freiburg/Gundelfingen
(D) |
DO1GUM-L |
JN38WB |
5 km |
160° |
Echolink 129169 |
A145.600/E145.000 |
Gempen
(CH) |
HB9BS |
JN37TL |
72 km |
195° |
|
A145.6125/E145.0125 |
Valsberg/Strasbourg(F) |
F5ZAU |
JN38PP |
74 km |
325° |
|
A145.625/E145.025 |
Petit Ballon/Colmar(F) |
F1ZDG |
JN37NX |
58 km |
256° |
|
A145.6625/E145.0625 |
Gerardmer-Le-Hohneck
(F) |
F1ZBV |
JN38MA |
63 km |
262° |
|
A145.675/E145.075 |
Höchenschwand
(D) |
DB0YH |
JN47BR |
46 km |
156° |
Echolink
198743 |
A145.6875/E145.0875 |
Manhay
(Dochamps) (B) |
ON0LTV |
JO20UH |
291 km |
328° |
|
A145.700/E145.100 |
Kalmit
(D) |
DB0XK |
JN49BH |
136 km |
8° |
|
A145.7125/E145.1125 |
Hornberg/
Dreiländereck (D) |
DB0XR |
JN37XP |
51 km |
173° |
Echolink
205527 |
A145.725/E145.125 |
Wissembourg
(F) |
F5ZCQ |
JN39WA |
102 km |
0° |
1750 Hz |
A145.7375/E145.1375 |
Homburg/Saarlaand
(D) |
DB0YK |
JN39PJ |
150 km |
344° |
1750 Hz |
A145.7375/E145.1375 |
Bad Ramsach
(CH) |
HB9FS |
JN37WJ |
79 km |
180° |
1750 Hz |
A145.750/E145.150 |
Totenkopf/Kaiserstuhl
(D) |
DB0ZF |
JN38UB |
12 km |
237° |
1750 Hz / DTMF |
A145.775/E.145.175 |
Lahr (D) |
DB0LHR |
JN38WI |
26 km |
5° |
1750
Hz |
A145.7875/E.145.1875 |
Triberg
(D) |
DB0WX |
JN48DC |
33 km |
93 |
|
70cm
FM repeaters
Output / Input QRG
in MHz |
QTH / location |
Call sign |
QRA / locator |
QRB
/ distance |
Direction |
Remark |
A430.075/E431.675 |
Petit Ballon/Colmar(F) |
F1ZDA |
JN37NX |
56 km |
254° |
|
A433.475/E431.875 |
Champ du
Feu (F) |
F5ZEW |
JN38PJ |
54 km |
311° |
CTCSS 67Hz |
A432.8375/E431.2375 |
Grosswintersberg
/ Vosges du Nord (F) |
F5ZUK |
JN38TX |
99 km |
349° |
CTCSS 67Hz |
A430.225/E431.825 |
Bischenberg
(F) |
F5ZAV |
JN38RL |
52 km |
324° |
1750 Hz/
CTCSS 67Hz |
AE432.825 |
Offenburg (D) |
DM0ZOG-L |
JN38XK |
36 km |
13° |
Echolink 288183 |
A433.425/E145.2125 |
Schirmeck
/ Champ du Feu(F) |
F5ZAW |
JN38PK |
54 km |
311° |
CTCSS
67Hz |
A438.675/E431.075 |
Muttenz/Baselland
(CH) |
HB9UHF-L |
JN37TM |
69 km |
194° |
Echolink
438675
CTCSS 71.9Hz |
A438.675/E431.075 |
Freiburg-Nord
Clubheim A05 (D) |
DH5WM-R |
JN38WA |
11 km |
169° |
Echolink
232762 |
A438.700/E431.100 |
Freiburg/Schauinsland
(D) |
DB0FRG |
JN37WW |
21 km |
174° |
Echolink 323942 via DL3GD-R |
A438.700/E431.100 |
Solothurn/Weissenstein
(CH) |
HB9BA |
JN37SG |
96 km |
195° |
1750 Hz oder CTCSS 123
Hz |
A438.725/E431.125 |
Grellingen (CH) |
HB9EBS |
JN37SK |
80 km |
197° |
1750 Hz / DTMF |
A438.775/E431.175 |
Kappelrodeck (D) |
DB0ORT |
JN48BN |
54 km |
20° |
1750 Hz / DTMF |
A438.800/E.431.200 |
Relais
Pilatus (CH) |
HB9UF |
JN46DX |
238 km |
172° |
CW-ID "P",
CTCSS 71,9 Hz |
A438.825/E.431.225 |
Saarbrücken
/ Holz |
DB0SR |
JN39MI |
152 km |
337° |
|
A438.850/E431.250 |
Totenkopf/Kaiserstuhl
(D) |
DB0ZF |
JN38UB |
12 km |
237° |
1750 Hz / DTMF |
A438.900/E431.300 |
Feldberg/Schwarzwald
(D) |
DB0FB |
JN47AU |
33 km |
154° |
1750 Hz / DTMF |
A438.925/E431.325 |
Teufelsmühle
/ Murgtal |
DB0TFM |
JN48ES |
83 km |
26° |
|
A439.000/E431.400 |
Brandenkopf/Haslach (D) |
DB0TN |
JN48BI |
33 km |
39° |
1750 Hz / DTMF |
A439.050/E431.450 |
Niesen
Berner Oberland (CH) |
HB9F |
JN36TP |
163 km |
187° |
|
A439.075/E431.475 |
Helmlingen/Rheinau
(D) |
DB0BH |
JN38XQ |
65 km |
5° |
CTCSS 94,8
Hz, mixed mode DMR |
A439.075/E431.475 |
Schramberg
Wasserturm (D) |
DB0CI |
JN48EF |
41 km |
73° |
Echolink
490907 |
A439.125/E431.525 |
Basel-Bruderholz
(CH) |
HB9FM |
JN37SM |
71 km |
199° |
1750 Hz
/ DTMF |
A439.175/E431.575 |
Lörrach/Hochblauen
(D) |
DB0DB |
JN37US |
40 km |
195° |
CTCSS 100Hz,
mixed mode C4FM |
A439.250/E431.650 |
Villingen-Schwenningen
(D) |
DB0VSS |
JN48GB |
52 km |
97° |
Echollink
383420
1750 Hz / DTMF |
A439.250/E431.650 |
Bad Ramsach
(CH) |
HB9FS |
JN37WJ |
79 km |
180° |
kein 1750
Hz |
A439.275/E431.675 |
Fronalpstock
(CH) |
HB9HD |
JN46HX |
137 km |
155° |
Echolink
TQ 71,9 Hz |
A439.375/E431.775 |
Bergerie
de Loveresse (CH) |
HB9XC |
JN37OG |
105 km |
208° |
1750 Hz |
A439.400/E431.800 |
Lahr (D) |
DB0LHR |
JN38WI |
26 km |
5° |
Echolink
77933 |
A439.475/E431.875 |
Champ du
Feu(F) |
F5ZAW |
JN38PJ |
54 km |
311° |
|
A439.750/E144.750 |
Strassbourg
(F) |
F5ZUV |
JN38UO |
541 km |
348° |
CTCSS
67Hz |
70cm
D-STAR & DMR & C4FM repeaters
Output
/ Input QRG
in MHz |
QTH
/ location |
Call
sign |
QRA
locator |
QRB / distance |
Direction |
Remark |
A430.2625/E439.6625 |
Bischenberg
(F) |
F5ZAV |
JN38RL |
52 km |
324° |
DMR Hytera Refelkt 3404 |
A430.375/E439.775 |
Haguenau
(F) |
F1ZDZ |
JN38VT |
79 km |
356° |
DStar |
A438.375/E430.775 |
Bonndorf (D) |
DB0WBD |
JN47CW |
31
km |
127° |
DStar |
A438.475/E430.875 |
Bonndorf (D) |
DB0WBD |
JN47CW |
31
km |
127° |
DMR
ID:262734 |
A438.5125/E430.9125 |
Karlsruhe (D) |
DB0UZ |
JN48FV |
98
km |
26° |
DMRplus
RD985 |
A438.500/E430.900 |
Hochkopf/Todtmos (D) |
DB0TOD |
JN37XS |
38 km |
171° |
DStar |
A438.550/E430.950 |
Lahr (D) |
DB0LHR |
JN38WI |
26 km |
5° |
DMR |
A439.075/E431.475 |
Helmlingen/Rheinau
(D) |
DB0BH |
JN38XQ |
65 km |
5° |
mixed mode
FM & DMR XRF 262A, XRF 850B |
A439.175/E431.575 |
Lörrach/Hochblauen
(D) |
DB0DB |
JN37US |
40
km |
195° |
C4FM
und FM CTCSS 100Hz mixed mode |
A439.250/E431.650 |
Villingen
Schwenningen (D) |
DB0VSS |
JN48GB |
50
km |
95° |
DMR
Hytera Reflekt 4008 |
A439.275/E431.675 |
Tholey
Schaumbergturm (D) |
DB0LZ |
JN39ML |
73
km |
305° |
DMR
plus |
A439.4875/E431.8875 |
Titisee
Schwarzwald (D) |
DB0TIT |
JN47CW |
31
km |
127° |
DStar |
A439.50625/E431.9625 |
Kappelrodeck (D) |
DB0ORT |
JN48BN |
54 km |
20° |
DStar |
A439.5625/E431.9625 |
Freiburg-Nord
Clubheim A05 (D) |
DB0FRB |
JN38WA |
11
km |
169° |
DStar
& DMR |
A439.5875/E431.9875 |
Lörrach/Hochblauen
(D) |
DB0DB-B |
JN37US |
40 km |
195° |
DStar |
A439.825/E430.425 |
Lauf/Schwarzwald
(D) |
DM0ZF-1 |
JN48BP |
63
km |
17° |
DMR
Motorola DMR-MARC Netz |
A439.875/E430.475 |
Brandenkopf/Haslach
(D) |
DB0TN |
JN48BI |
33
km |
39° |
DMR
ID: 262703 |
A439.8875/E430.4875 |
Spielberg
(D) |
DB0UX |
JN48FX |
106
km |
24° |
DMR
Hytera Reflekt 4008 |
A439.900/E430.500 |
Freundenstadt/Schwarzwald
(D) |
DB0SKF |
JN48EK |
52
km |
45° |
DMR
Hytera Reflekt 4008 |
A439.9375/E430.5375 |
Lauf/Schwarzwald
(D) |
DM0ZF-2 |
JN48BP |
63
km |
17° |
DMR
Hytera Netz, XRF 262A, XRF 850B |
23cm
FM repeaters
Output / Input QRG
in MHz |
QTH / location |
Call sign |
QRA locator |
QRB
/ distance |
Direction |
Remark |
A1298.350/E1270.350 |
Lörrach/Hochblauen
(D) |
DB0YE |
JN37US |
40 km |
195° |
1750 Hz
/ DTMF |
A1298.550/E1270.550 |
Totenkopf/Kaiserstuhl
(D) |
DB0ZF |
JN38UB |
12 km |
237° |
1750 Hz |
ATV
repeaters
QTH / location |
Call sign |
QRA locator |
QRB
/ distance |
Direction |
Output / Input QRG
in MHz |
Remark |
Totenkopf
/ Kaiserstuhl (D) |
DB0ZF
(out of operation) |
JN38UB |
12
km |
237° |
Output:
2435MHz hor |
FM-ATV,
Ton 5.5
MHz |
Input:
10400MHz
hor |
FM-ATV
Ton 6.5 MHz
Rücksprechen und DTMF 431.950MHz
Sender ein *
Testbild / Info 0
User 10400 MHz 1
DB0KAN
Monitor 2
HB9EBS Monitor 3
DB0OFG Monitor 6
Sender aus # |
Kandel
(D) |
DB0KAN
(out of operation) |
JN48AB |
16
km |
115° |
Output:
10220MHz
hor |
FM-ATV,
LO=9GHz, IF=1221 MHz,
Ton 6.5 MHz,
Video invertiert (h1) |
Input:
5772MHz
hor |
FM-ATV
Ton 6.5 MHz,
Rücksprechen
und DTMF 431.975MHz Sender ein *
User 5772 MHz 1
DB0ZF
Monitor 2
Aussenkamera
9
Sender aus
0 |
Hochblauen(D) |
DB0DB |
JN37US |
40
km |
195° |
Output:
1291 MHz ver/
10200 MHz hor |
1291 MHz
dig,
CR 7/8, SR 4.167,
VPID 33,
APID 49,
10200 MHz analog, Ton=6.5 MHz |
Input:
2329 MHz
Rundstrahler vert,
Nordantenne
hor |
FM ATV
Rücksprechen und DTMF 431.700 MHz
Einschalten (59m) 1*01
Testbild 1*11
DB0XR Monitor 1*12
2329
MHz VOmni 1*13
2329 MHz HNord 1*23
Innenkamera 1*25
Aussenkamera 1*26
Overlay aus 1*29 |
Hornberg
(D)
im Dreiländereck bei Herrischried |
DB0XR
via
DB0DB |
JN37XP |
51
km |
173° |
Output:
10180MHz
hor |
10180 MHz
dig,
CR 5/6, SR 4.615,
VPID 80,
APID 81,
|
Input:
2329 MHz hor |
FM
ATV 2329 MHz
Rücksprechen und DTMF
430.150 MHz
Bildwechsler 511
DB0DB Monitor 521
HB9EBS Monit.
531
HB9F Monitor 541
HB9ZF Monitor 551
User 2329 MHz 581
Testbild 5A1
2m User Ton 611x
DB0DB Ton 621x
HB9EBS Ton 631x
HB9F Ton 641x
HB9ZF Ton 651x
User Ton 681x
Ton alles aus 600* |
Bischenberg
(F) |
F5ZUY
(out of operation) |
JN38RL |
52
km |
324° |
Output:
1291 MHz hor/
436 MHz |
1290 MHz
SR 6000, CR 2/3
A1:VPID48, APID49,
A2:VPID64, APID65,
A3:VPID32, APID33
436 MHz DVB-C |
Input:
2395 MHz hor
2330 MHz hor
437 MHz
DVB-S |
E1, E2: analog,
Ton=6.5 MHz
E3: digital DVB-S,
Rücksprechen
und DTMF 144.750 MHz,
(activate TX using 123) |
Champ
du Feu /
nr Strassbourg (F) |
F5ZEW
(out of operation) |
JN38PJ |
54
km |
311° |
Output:
1270 MHz hor |
SR 2000,
CR 1/2,
VPID32, APID33 |
Input:
2373 MHz hor |
FM ATV 2372
MHz
Ton=6.5 MHz
Rücksprechen
und DTMF 431.875 MHz
PIP 2 Quellen "A"
Sender ein (2min) "B"
Testbild+Kamera "C" |
Strassbourg
(F) |
F5ZSM |
JN38UO |
54
km |
348° |
Output:
2308 MHz |
SR??, CR
??;
VPID256, APID257 |
Input:
2358 MHz
1270 MHz |
E1: analog,
E2: digital F5ZEW
DTMF 431,925
MHz "B" |
Grand Ballon/Vogesen
(F) |
F1ZFN
(out of operation) |
JN37NV |
59 km |
245° |
Output:
10458
MHz hor |
|
Input:
1250MHz
hor |
Rücksprechen
und DTMF 144.7625MHz |
Hornisgrinde
(D)
Nordschwarz-
wald |
DB0OFG |
JN48CO |
60km |
26° |
Output:
1279,5
MHz hor
10200MHz hor |
FM-ATV |
Input:
2343MHz
hor |
Rücksprechen
und DTMF 431.925MHz |
Grellingen/
Eggfluh (CH) |
HB9EBS
via
DB0XR, DB0DB
derzeit
ausser Betrieb ! |
JN37SK |
78
km |
199° |
Output:
10378 MHz hor |
FM-ATV, Ton=6.5
MHz
|
Input:
2329 MHz hor |
FM-ATV, Ton=6.5
MHz
Rücksprechen und DTMF
144.750MHz |
Hohwacht,
Orn
(Bachtel) (CH) |
HB9ZF
via
DB0XR,
DB0DB |
JN47KH |
115
km |
139° |
Output:
436.50MHz ver
1285 MHz hor |
A 436.500
MHz, 2Msym, CR 7/8
A 1285 MHz FM
|
Input:
1250 MHz hor
2308 MHz ver
10440
MHz |
E1 1250 MHz
FM
E2 2308 MHz FM
E3 10440 MHz FM
E1, E2, E3: Ton=6.5 MHz
E 144.850 MHz
FM (SSTV)
E 144.525 MHz (PL 131,8Hz)
FM&DTMF |
Hoechsten
(D) |
DB0UTZ
via
DB0XR,
DB0DB |
JN47QT |
116
km |
106° |
Output:
10249 MHz hor
10200 MHz
5724 MHz
2435 MHz |
10249 MHz
analog,
10200 MHz DVB-S
5724 MHz
analog,
2435 MHz DVB-S |
Input:
10.440 MHz hor |
ATV Ton=6.5
MHz
Rücksprechen und DTMF 431.925
MHz |
Schilthorn,
Piz Gloria (CH) |
HB9F
via
DB0XR,
DB0DB |
JN36WN |
171
km |
180° |
Output:
2350 MHz hor |
15MSymb/s,
FEX 3/4, VPID 1280, APID 1281,PMTPID 1282 |
Input:
1280 MHz hor
1280 MHz hor |
1280 MHz
FM-ATV T=6.0 MHz und T=6.5 MHz
1280
MHz DVB-S, 4MSymb/s, FEC 3/4, VPID 256,
APID 257, PMTPID 258
Rücksprechend
und DTMP 144.7750 MHz |
PR-Digipeaters
Output / Input QRG
in MHz |
QTH / location |
Call sign |
QRA locator |
QRB
/ distance |
Direction |
Remark |
AE144.800 |
Pfeiffingen
(CH) |
HB9FM-4 |
JN37TK |
76 km |
194° |
1200bd
AFSK APRS Digi |
AE144.925 |
Petit
Ballon/Colmar (F) |
F6KDL-2 |
JN37NX |
58 km |
256° |
1200bd
AFSK DX-Cluster |
AE438.075 |
Freiburg-Nord
Clubheim A05 (D) |
DB0FRB |
JN38WA |
11 km |
169° |
9600bd
FSK |
A438.400/E431.800 |
Freiburg-Schauinsland
(D) |
DB0FRG |
JN37WW |
21
km |
174° |
1200bd
AFSK |
VHF/UHF/SHF
beacon
Output QRG
in MHz |
QTH / location |
Call sign |
QRA locator |
QRB
/ distance |
Direction |
Remark |
144.444 |
Freiburg/Wiehre
(D) |
DB0FRE |
JN37WX |
16 km |
172° |
Mode
Sequence: CW, RTTY, CW, PSK31, CW |
432.444 |
Freiburg/Wiehre
(D) |
DB0FRE |
JN37WX |
16 km |
172° |
Mode
Sequence: CW, RTTY, CW, PSK31, CW |
1296.880 |
Freiburg/Wiehre
(D) |
DB0FRE |
JN37WX |
16 km |
172° |
Mode
Sequence: CW, RTTY, CW, PSK31, CW |
1296.812 |
Petit Ballon/Colmar(F) |
F1ZBI |
JN37NX |
56 km |
254° |
|
|
360°
Panorama / Rundblick über Freiburg
und Umgebung vom Schlossbergturm aus gesehen
(6 Gigapixel) |
|
360°
Panorama / Rundblick über Freiburg
und Umgebung vom Eichelspitzturm im Kaiserstuhl
aus gesehen
(4 Gigapixel) |
|
360°
Panorama / Rundblick vom Hochblauen aus
gesehen
(4 Gigapixel) |
|
360°
Panorama / Rundblick vom Feldberg aus gesehen
(6 Gigapixel) |
|
360°
Panorama / Rundblick vom Seebuck (beim Feldberg)
aus gesehen
(4 Gigapixel) |
DARC OV-Freiburg A05
Freiburg also has a local
amateur radio club which is part of DARC
(Deutscher Amateur Radio Club). OV-Freiburg
"A05" has about 140 members and
owns a nice club home with a decent radio
station DK0FR. The club home is located
next to Freiburg airport (exactly at the
north eastern corner of the airport in JN38WA). The homepage of the
local club "A05" can be found
when clicking on the picture to the right.
The club meets every month on the 4th Friday at 19:30h local
time in the club home.
If you want to
get in touch with members of A05 you may
try the following frequencies: on 2m 144.550
MHz and 145.525 MHz simplex, on 70cm 433.500
MHz simplex, on 10m 28.600 MHz simplex.
Furthermore you may the nearby repeaters
DB0ZF (145.700 MHz -0.6 MHz shift, 438.850
MHz -7.6 MHz shift), DB0FRG (438.700 MHz
-7.6 MHz shift) and DB0YE (439.175 MHz -7.6
MHz shift).
The clubstation also hosts
an APRS beacon (144.800 MHz) and a PR digipeater
(438.075 MHz). Both use the callsign DB0FRB. |
|
|
|
